Number formats

Updated

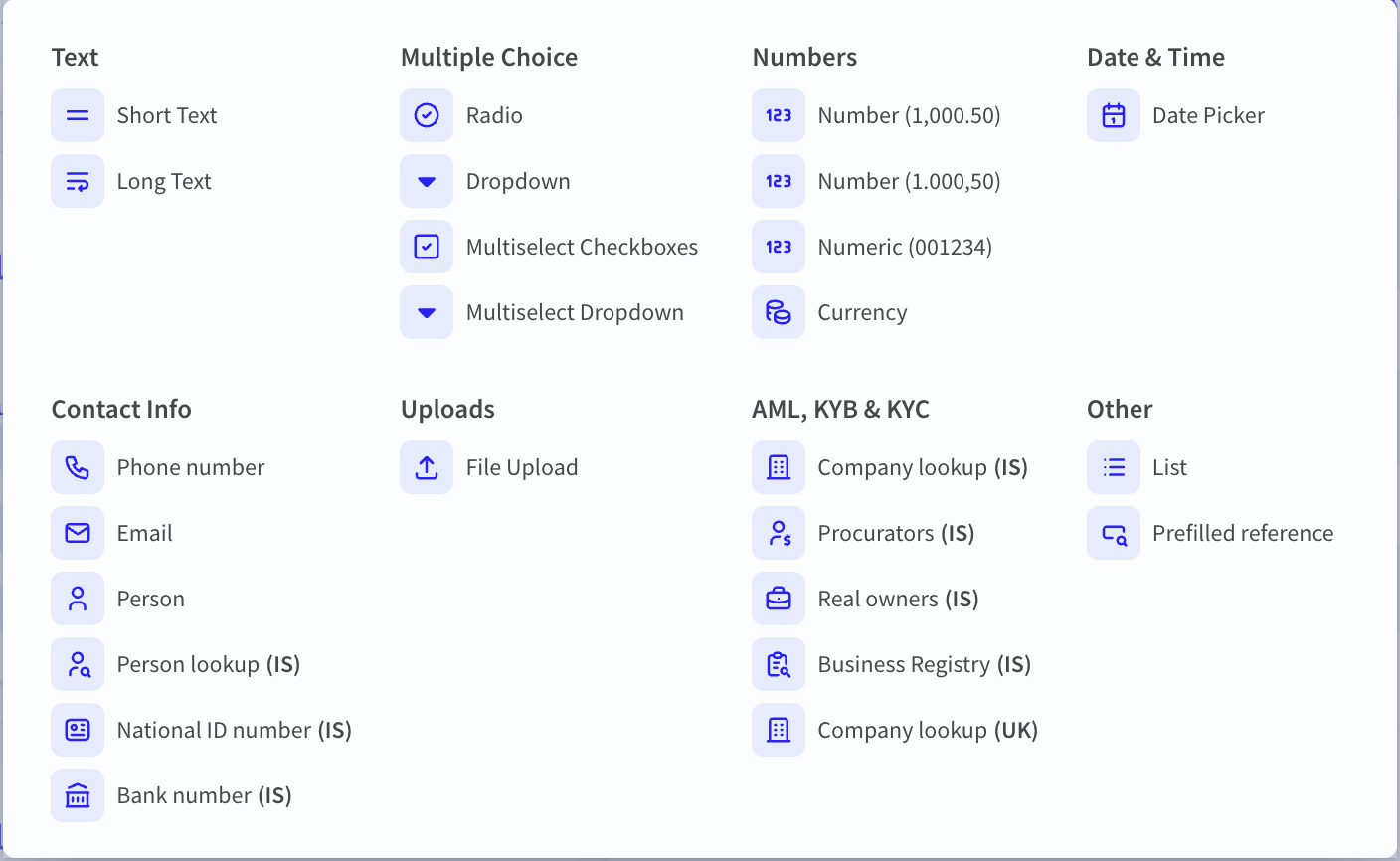

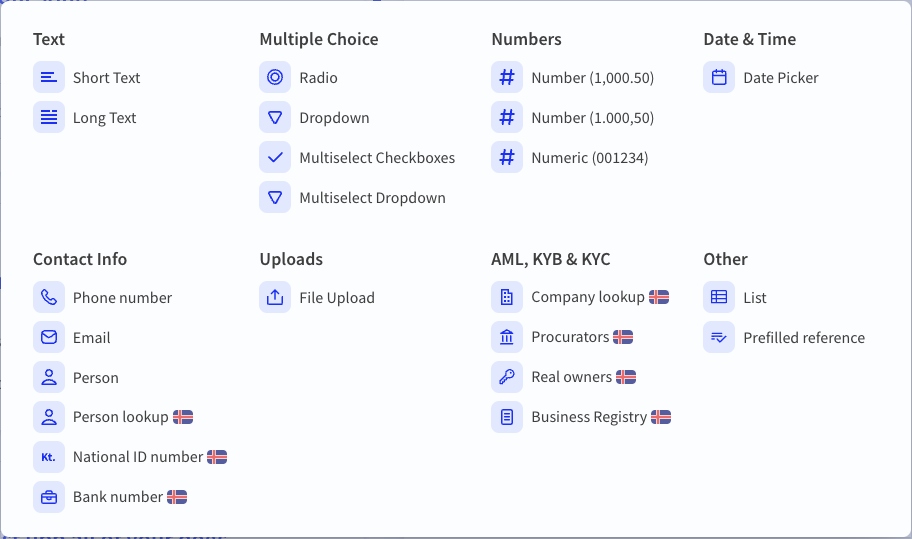

Within the questionnaire and setup information nodes there are three different kinds of question formats for numbers.

  1. Number (1,000.50)
  2. Number (1.000,50)
  3. Numeric

Number (1,000.50)

The Number (1,000.50) format requires the signee to write a number. The number will be formatted with a comma for a thousands separator and a period for a decimal separator. The minimum and maximum value can be configured and whether decimals are allowed.

Number (1.000,50)

The Number (1.000,50) format works the same as the Number (1,000.50) format except the number will be formatted with a period for a thousands separator and a comma for a decimal separator. The minimum and maximum value can be configured and whether decimals are allowed.

Numeric

The Numeric format requires the signee to write a number. The number will not have any thousands or decimal separators. The minimum and maximum amount of numbers can be set for this question type. Note: these are the minimum and maximum amount of characters, not the minimum and maximum value of the number.

Configuration

Fill in the fields to configure the Number element:

  1. Title: Enter the title here (required)
  2. Description: If the question requires further explanations write them here (optional)
  3. Tooltip: If the question requires even further explanations you can write them here, and they'll appear in an info bubble (optional)
  4. Type: The element type. If you change your mind about using the chosen element type, you can choose another element type here.
  5. This field is required: By default all questions are required to be answered by the signee. If a question should be optional, uncheck this checkbox.
  6. Placeholder: Here you can write text that appears in the input field for the signee (optional)
  7. Minimum value (for Number (1.000,50) and Number (1,000.50) only): You can set the minimum value of the number that the signee needs to input (optional)
  8. Maximum value (for Number (1.000,50) and Number (1,000.50) only): You can set the maximum value of the number that the signee needs to input (optional)
  9. Allow decimals (for Number (1.000,50) and Number (1,000.50) only): You can choose if the number entered can include decimals.
  10. Minimum length (For numeric only): You can set the minimal amount of characters that the signee needs to input (optional)
  11. Maximum length (For numeric only): You can set the minimal amount of characters that the signee needs to input (optional)

Advanced field settings

  1. Data key: A Data key is automatically generated when you enter the question. The data key is used for delivering information between Taktikal and external systems, such as via integration, webhooks and API. These Data Keys need to be unique but can be changed here. We advise using caution when changing Data Keys if the connection to the external system has already been made, since changes to the Data Key will cause errors in delivery unless the same change is made to the Data Key in the other system.
